The following sensors of the firm Partikelmess- und Analysesysteme GmbH are preferably
used with the FMC-DAS System:

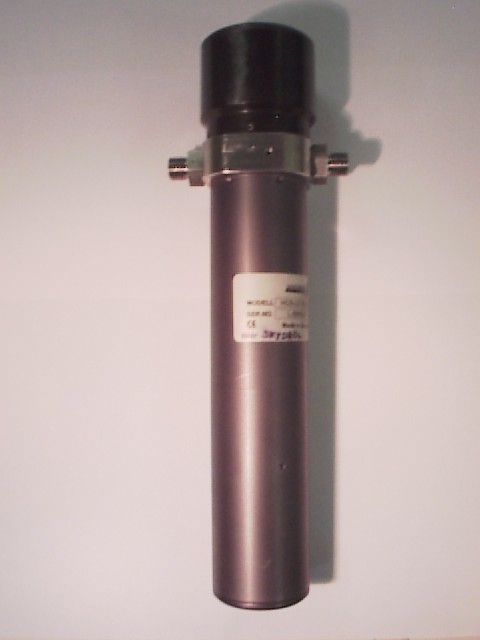

Liquid sensors:


                                 HCB-LD-50/50; 1300 bar, Medium: Skydrol LD4


Laserdiode sensors:

Sensor:                 measuring range:         flow:                 concentration limit:

HCB-LD-15/25        1,0 - 100 Ám          5 - 25   ml/min             200.000 Partikel/ml
                                                                                                   at 10 ml/min

HCB-LD-25/25        1,0 - 200 Ám          5 - 50   ml/min             120.000 Partikel/ml
                                                                                                   at 10 ml/min

HCB-LD-50/50        1,0 - 450 Ám          5 - 150 ml/min            24.000 Partikel/ml
                                                                                                   at 25 ml/min

HCB-LD-100           2,5 - 850 Ám        50 - 2.000 ml/min        ii 1.200 Partikel/ml
                                                                                                   at 50 ml/min

HCB-LD-250           10 - 2000 Ám     250 - 10.000   ml/min      180 Partikel/ml

HCB-LD-300           20 - 2500 Ám     200 - 5.000     ml/min      90 Partikel/ml

HCB-LD-900           30 - 8000 Ám     500 - 150.000 ml/mini     10 Partikel/ml


Special white-light sensors:

Sensor:                    measuring range:         flow:                 concentration limit:

HCB-25/25               1,0 - 100 Ám         5 - 50   ml/min              24.000 Partikel/ml

HCB-50/25               1,0 - 100 Ám         5 - 100 ml/min              12.000 Partikel/ml

HCB-50/50               1,0 - 100 Ám         5 - 150 ml/min              6.000 Partikel/ml


We have the possibility to connect nearly every sensor and measure device to our system.


To get further details to the sensors on this page, please visit the website of the
Firm Partikelmess- und Analysesysteme GmbH.
